Plastics Europe Public LCI Database

Process Data set: Styrene acrylonitrile (SAN), a-Methyl styrene acrylonitrile (AMSAN); suspension or continuous bulk polymerisation; production mix, at producer; n/a (en) en

Process information

Key Data Set Information
Location	EU-27
Geographical representativeness description	Primary production data for SAN/AMSAN production are from four different European suppliers each, in four European countries (Germany, Italy, Spain and The Netherlands). Fuel and energy inputs in the system reflect average European conditions and whenever applicable, site specific conditions were applied, to reflect representative situations.
Reference year	2010
Name	Base name ; Treatment, standards, routes ; Mix and location types ; Quantitative product or process properties Styrene acrylonitrile (SAN), a-Methyl styrene acrylonitrile (AMSAN); suspension or continuous bulk polymerisation; production mix, at producer; n/a
Use advice for data set	The data set can be used for all LCA/CF studies where the product is needed. Combination with individual unit processes using this commodity enables the generation of user-specific (product) LCAs. SAN is marketed for a range of applications such as cookware, transparent parts in electronics and electrical appliances, instrument panels, sanitary and medical goods or cosmetic packaging. SAN can also be used as the rigid component for ABS manufacturing. SAN can be recycled, used articles can be ground and directly recycled in the production process. Furthermore, energy recovery by incineration is also possible.
Technical purpose of product or process	SAN is marketed for a range of applications such as cookware, transparent parts in electronics and electrical appliances, instrument panels, sanitary and medical goods or cosmetic packaging. SAN can also be used as the rigid component for ABS manufacturing. SAN/AMSAN can be recycled, used articles can be ground and directly recycled in the production process. Furthermore, energy recovery by incineration is also possible.
Synonyms	SAN, AMSAN, AMS
Classification	Class name : Hierarchy level GaBiCategories: Processes / Production / Material production / Plastic production
General comment on data set	The main data source was a data collection from European producers of Styrene Acrylonitrile (SAN)/Alpha Methyl Styrene (AMSAN). Primary data on gate-to-gate SAN/AMSAN production is derived from site-specific information for processes under operational control supplied by the participating companies of this eco-profile. Primary production data for SAN/AMSAN production are from four different European suppliers: overall four sites for SAN production, one for AMSAN are included in the average calculations. This covers more than 90 % of the European SAN/AMSAN (EU-27) production in 2013.
Copyright	Yes
Owner of data set	Plastics Europe
Quantitative reference
Reference flow(s)	Styrene acrylonitrile (SAN), a-Methyl styrene acrylonitrile (AMSAN) - 1.0 * 1.0 kg (Mass)
Time representativeness
Data set valid until	2022
Time representativeness description	The LCI data for SAN/AMSAN production was collected as 12 month averages representing the year 2013. Background data have reference year of 2010 to 2013. Even if all data were related to 2013, major changes in the result are not expected, as technological breakthrough is not known for refining, steam cracking or re-refining technology or one of the related up-stream technologies. These are rather established and if possible constantly optimised technologies. The dataset is considered to be valid until substantial technological changes in the production chain occur.
Technological representativeness
Technology description including background system	Foreground system: Styrene Acrylonitrile (SAN) and Alpha-Methyl Styrene Acrylonitrile (AMSAN) are most commonly made using a bulk polymerisation process. The process consists of continuous feeds of the monomers as well as possibly initiators chain transfer agents and solvent, to one or more polymerisation reactors. Polymerisation takes place between 80 and 170°C; adequate agitation is critical for proper tempera-ture and composition control. The product then goes to devolatilisation units and pelletiser. Unreacted monomers are recycled to maintain conversion and composition at desired levels. For SAN/AMSAN sold to the market, additives such as lubricants, antioxidants or light stabilisers can also be added. Background system: Electricity: Electricity is modelled according to the individual country-specific situations. The country-specific modelling is achieved on multiple levels. Firstly, individual energy carrier specific power plants and plants for renewable energy sources are modelled according to the current national electricity grid mix. Modelling the electricity consumption mix includes transmission / distribution losses and the own use by energy producers (own consumption of power plants and "other" own consumption e.g. due to pumped storage hydro power etc.), as well as imported electricity. Secondly, the national emission and efficiency standards of the power plants are modelled as well as the share of electricity plants and combined heat and power plants (CHP). Thirdly, the country-specific energy carrier supply (share of imports and / or domestic supply) including the country-specific energy carrier properties (e.g. element and energy content) are accounted for. Fourthly, the exploration, mining/production, processing and transport processes of the energy carrier supply chains are modelled according to the specific situation of each electricity producing country. The different production and processing techniques (emissions and efficiencies) in the different energy producing countries are considered, e.g. different crude oil production technologies or different flaring rates at the oil platforms. Thermal energy, process steam: The thermal energy and process steam supply is modelled according to the individual country-specific situation with regard to emission standards and considered energy carriers. The thermal energy and process steam are produced at heat plants. Efficiencies for thermal energy production are by definition 100% in relation to the corresponding energy carrier input. For process steam the efficiency ranges from 85%, 90% to 95%. The energy carriers used for the generation of thermal energy and process steam are modelled according to the specific import situation (see electricity above). Transports: All relevant and known transport processes are included. Ocean-going and inland ship transport as well as rail, truck and pipeline transport of bulk commodities are considered. Energy carriers: The energy carriers are modelled according to the specific supply situation (see electricity above). Refinery products: Diesel fuel, gasoline, technical gases, fuel oils, lubricants and residues such as bitumen are modelled with a parameterised country-specific refinery model. The refinery model represents the current national standard in refining techniques (e.g. emission level, internal energy consumption, etc.) as well as the individual country-specific product output spectrum, which can be quite different from country to country. The supply of crude oil is modelled, again, according to the country-specific situation with the respective properties of the resources.

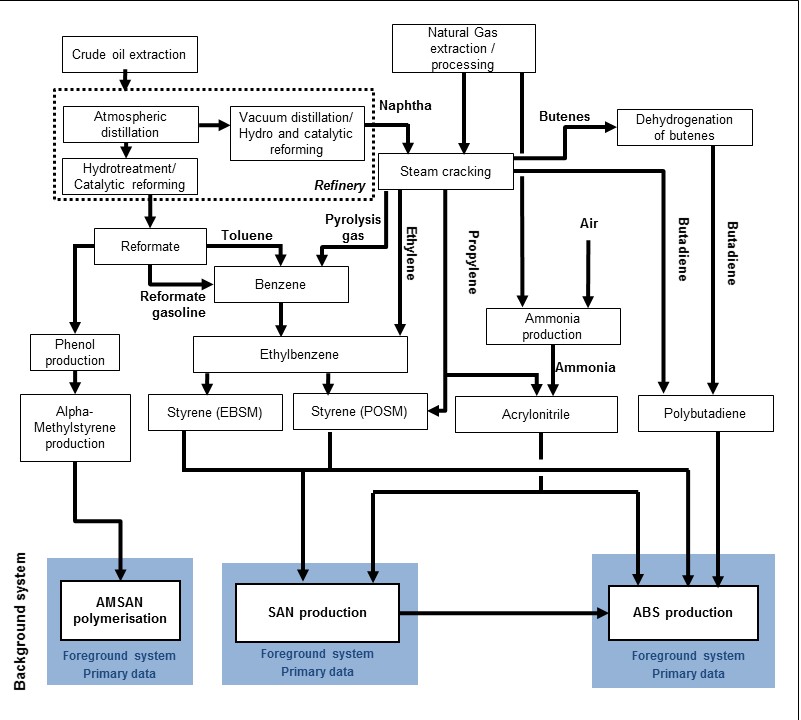

Flow diagram(s) or picture(s)
Mathematical model
Model description	The calculation follows the vertical calculation methodology, i.e. that the averaging is done after modelling the specific processes. Restrictions on competition and confidentiality do not allow displaying and describing the systems and analysing details.

Modelling and validation

LCI method and allocation

Type of data set

LCI result

LCI Method Principle

Attributional

Deviation from LCI method principle / explanations

None

LCI method approaches

Allocation - net calorific value
Allocation - market value
Allocation - mass
Allocation - exergetic content
Not applicable

Deviations from LCI method approaches / explanations

Foreground system: In some companies information, output material with deviations from the required specification is re-ported. If these materials show only slight differences and are sold at comparable price-level, they are assumed as product output (< 4% of total production); in case of material declared as off-grade sent to recovery, neither further environmental burden nor credits are given to the modelled system (< 1% of total production). No post-consumer waste is reported as input to the system, therefore no allocation between different life cycles is necessary. Background system: In the refinery operations, co-production is addressed by applying allocation based on mass and net calorific value. The chosen allocation in downstream petrochemicals is based on several sensitivity analyses, which were reviewed by petrochemical experts. Materials and chemicals needed are modelled using the allocation rule most suitable for the respective product (mass, energy, exergy, economic). For further information on specific product see documentation.gabi-software.com.

Modelling constants

All data used in the calculation of the LCI results refer to net calorific value.

Deviation from modelling constants / explanations

None

LCA methodology report

Data sources, treatment and representativeness

Data cut-off and completeness principles

In the foreground processes all relevant flows are considered, trying to avoid any cut-off of material and energy flows. In single cases additives used in the SAN/AMSAN foreground unit process (<0.3% m/m of product output) are neglected. In such cases, it is assured that no hazardous sub-stances or metals are present in this neglected part. According to the GaBi database used in the background processes, at least 95% of mass and energy of the input and output flows are covered and 98% of their environmental relevance (according to expert judgment) are considered, hence an influence of cut-offs less than 1% on the total is expected. Transports for the main input materials (styrene, alpha-methyl styrene, acrylonitrile) contribute less than 3% to the overall environmental burden. The contribution of transport of small material proportions is expected to be less than 1%; hence the transports for minor input amounts are excluded.

Deviation from data cut-off and completeness principles / explanations

None

Data selection and combination principles

90% coverage of the European industry

Deviation from data selection and combination principles / explanations

None

Data treatment and extrapolations principles

The data set represents the specific situation in Europe, focusing on the main technologies used for producing SAN/AMSAN in Europe. Primary production data for SAN/AMSAN production are from four different European suppliers each, in four European countries (Germany, Italy, Spain and The Netherlands).

Deviation from data treatment and extrapolations principles / explanations

None

Documentation of data quality management

Data source(s) used for this data set

Percentage supply or production covered

90.0 %

Annual supply or production volume

The considered participants covered 90% of all SAN/AMSAN production in Europe in 2013.

Sampling procedure

European producers act as a main source of data for the production of SAN/AMSAN on the basis of a direct questionnaire. Primary data on gate-to-gate SAN/AMSAN production is derived from site specific information for processes under operational control supplied by the participating companies of this study. The data for the upstream supply chain until the precursors are taken from the database of the software system GaBi 6.

Data collection period

2013

Uncertainty adjustments

None

Completeness

Completeness of product model

All relevant flows quantified

Supported impact assessment methods

CML2001 - Apr. 2013, Abiotic Depletion (ADP elements)
CML2001 - Apr. 2013, Abiotic Depletion (ADP fossil)
CML2001 - Apr. 2013, Acidification Potential (AP)
CML2001 - Apr. 2013, Eutrophication Potential (EP)
CML2001 - Apr. 2013, Global Warming Potential (GWP 100 years)
CML2001 - Apr. 2013, Ozone Layer Depletion Potential (ODP, steady state)
CML2001 - Apr. 2013, Photochem. Ozone Creation Potential (POCP)
Primary energy demand from ren. and non ren. resources (gross cal. value)

Completeness elementary flows, per topic

Noise: No statement

Validation

Type of review

Scope / Method(s) of review

Data quality indicators

Independent internal review

Scope name	Method name
Unit process(es), black box	Expert judgement Mass balance Cross-check with other data set Element balance Energy balance Cross-check with other source
Goal and scope definition	Compliance with ISO 14040 to 14044 Expert judgement
Life cycle inventory methods	Compliance with ISO 14040 to 14044
LCIA results calculation	Compliance with ISO 14040 to 14044 Expert judgement
Unit process(es), single operation	Expert judgement Mass balance Cross-check with other data set Element balance Energy balance Cross-check with other source
LCIA results	Expert judgement Cross-check with other data set Compliance with ISO 14040 to 14044 Cross-check with other source
LCI results or Partly terminated system	Expert judgement Mass balance Cross-check with other data set Element balance Energy balance Cross-check with other source
Raw data	Expert judgement Validation of data sources Sample tests on calculations Cross-check with other source
Documentation	Compliance with ISO 14040 to 14044 Documentation Expert judgement

Overall quality: Good
Methodological appropriateness and consistency: Good
Precision: Good
Completeness: Good
Geographical representativeness: Good
Time representativeness: Very good
Technological representativeness: Good

Reviewer name and institution
PE INTERNATIONAL

Type of review

Scope / Method(s) of review

Data quality indicators

Independent external review

Scope name	Method name
LCIA results calculation	Compliance with ISO 14040 to 14044 Expert judgement
Goal and scope definition	Compliance with ISO 14040 to 14044 Cross-check with other source
Documentation	Compliance with ISO 14040 to 14044 Cross-check with other source
LCI results or Partly terminated system	Documentation Expert judgement Mass balance Energy balance
Unit process(es), black box	Expert judgement Cross-check with other data set
Life cycle inventory methods	Compliance with ISO 14040 to 14044 Cross-check with other source
Unit process(es), single operation	Cross-check with other data set
LCIA results	Expert judgement Cross-check with other source

Overall quality: Not evaluated / unknown
Methodological appropriateness and consistency: Very good
Precision: Very good
Completeness: Good
Geographical representativeness: Good
Time representativeness: Good
Technological representativeness: Very good

Reviewer name and institution
Matthias Schulz DEKRA Assurance Services GmbH

Compliance Declarations

Compliance

Compliance system name

GaBi conformity system

Approval of overall compliance

Fully compliant

Nomenclature compliance

Fully compliant

Methodological compliance

Fully compliant

Review compliance

Fully compliant

Documentation compliance

Fully compliant

Quality compliance

Not defined

Compliance

Compliance system name

UNEP SETAC Life Cycle Initiative

Approval of overall compliance

Not defined

Nomenclature compliance

Not defined

Methodological compliance

Not defined

Review compliance

Not defined

Documentation compliance

Not defined

Quality compliance

Not defined

Compliance

Compliance system name

ILCD Data Network - Entry-level

Approval of overall compliance

Not defined

Nomenclature compliance

Fully compliant

Methodological compliance

Fully compliant

Review compliance

Not defined

Documentation compliance

Fully compliant

Quality compliance

Not defined

Administrative information

Commissioner and goal
Commissioner of data set	Plastics Europe
Intended applications	This background LCI data set can be used for any types of LCA studies. LCA studies considering the full life cycle (»cradle-to-grave«) of an application or product allow for comparative assertions to be derived. It is essential to note that comparisons cannot be made at the level of the polymer or its precursors. In order to compare the performance of different materials, the whole life cycle and the effects of relevant life cycle parameters must be considered. It is intended to be used by member companies, to support product-orientated environmental management; by users of plastics, as a building block of life cycle assessment (LCA) studies of individual products; and by other interested parties, as a source of life cycle information.
Data generator
Data set generator / modeller	PE INTERNATIONAL
Data entry by
Time stamp (last saved)	2015-03-01T00:00:00+01:00
Data set format(s)	ILCD format 1.1
Data entry by	PE INTERNATIONAL
Official approval of data set by producer/operator	No official approval by producer or operator
Publication and ownership
UUID	420d5b29-ea2a-41d8-9fcf-e02aae3ad52f
Date of last revision	2015-03-01T00:00:00+01:00
Data set version	09.00.000
Workflow and publication status	Data set finalised; entirely published
Unchanged re-publication of	GaBi databases
Owner of data set	Plastics Europe
Copyright	Yes
License type	Other
Access and use restrictions	GaBi (source code, database including extension modules and single data sets, documentation) remains property of PE INTERNATIONAL AG. PE INTERNATIONAL AG delivers GaBi licenses comprising data storage medium and manual as ordered by the customer. The license guarantees the right of use for one installation of GaBi. Further installations using the same license are not permitted. Additional licenses are only valid if the licensee holds at least one main license. Licenses are not transferable and must only be used within the licensee's organisation. Data sets may be copied for internal use. The number of copies is restricted to the number of licenses of the software system GaBi the licensee owns. The right of use is exclusively valid for the licensee. All rights reserved.

Inputs and Outputs

Inputs

Type of flow	Classification	Flow	Mean amount	Resulting amount
Elementary flow		air	22.5171512466934 kg	22.5171512466934 kg
Elementary flow		antimony	9.58215841917943E-11 kg	9.58215841917943E-11 kg
Elementary flow		barium sulfate	1.60684792011716E-14 kg	1.60684792011716E-14 kg
Elementary flow		baryte	6.27382111712457E-7 kg	6.27382111712457E-7 kg
Elementary flow		basalt	1.54318740873218E-7 kg	1.54318740873218E-7 kg
Elementary flow		bauxite	4.25120989030266E-4 kg	4.25120989030266E-4 kg
Elementary flow		bentonite	0.00183171785384453 kg	0.00183171785384453 kg
Elementary flow		brown coal; 11.9 MJ/kg	0.823871340326217 MJ	0.823871340326217 MJ
Elementary flow		calcium carbonate	0.0159176620806578 kg	0.0159176620806578 kg
Elementary flow		calcium chloride	1.64517384392142E-12 kg	1.64517384392142E-12 kg
Elementary flow		carbon	2.71640289956286E-10 kg	2.71640289956286E-10 kg
Elementary flow		carbon dioxide	0.0500539169979823 kg	0.0500539169979823 kg
Elementary flow		chromium	3.6635049616232E-6 kg	3.6635049616232E-6 kg
Elementary flow		clay	4.45332992521358E-4 kg	4.45332992521358E-4 kg
Elementary flow		cobalt	9.60117896895154E-11 kg	9.60117896895154E-11 kg
Elementary flow		colemanite	2.93476685752844E-6 kg	2.93476685752844E-6 kg
Elementary flow		copper	1.97316805691404E-5 kg	1.97316805691404E-5 kg
Elementary flow		crude oil; 42.3 MJ/kg	46.8100495013547 MJ	46.8100495013547 MJ
Elementary flow		dinitrogen	4.16847468588552E-12 kg	4.16847468588552E-12 kg
Elementary flow		dolomite	1.84622871445047E-5 kg	1.84622871445047E-5 kg
Elementary flow		feldspar	3.86285599139111E-21 kg	3.86285599139111E-21 kg
Elementary flow		fluorspar	4.72585155440242E-6 kg	4.72585155440242E-6 kg
Elementary flow		gold	2.13833668976077E-10 kg	2.13833668976077E-10 kg
Elementary flow		granite	3.83754520054632E-21 kg	3.83754520054632E-21 kg
Elementary flow		ground water	11.1088677790624 kg	11.1088677790624 kg
Elementary flow		gypsum	8.46139899721705E-5 kg	8.46139899721705E-5 kg
Elementary flow		hard coal; 26.3 MJ/kg	1.43612076169968 MJ	1.43612076169968 MJ
Elementary flow		inert rock	1.40848328578538 kg	1.40848328578538 kg
Elementary flow		iridium	1.7779961053614E-13 kg	1.7779961053614E-13 kg
Elementary flow		iron	0.00112725585214623 kg	0.00112725585214623 kg
Elementary flow		kaolin	5.4219746464259E-6 kg	5.4219746464259E-6 kg
Elementary flow		lake water	49.1296137961055 kg	49.1296137961055 kg
Elementary flow		lead	2.25364392888821E-5 kg	2.25364392888821E-5 kg
Elementary flow		magnesite	8.79841099841488E-6 kg	8.79841099841488E-6 kg
Elementary flow		magnesium	5.29401688467451E-10 kg	5.29401688467451E-10 kg
Elementary flow		magnesium chloride	2.74471499591576E-4 kg	2.74471499591576E-4 kg
Elementary flow		manganese	2.42442000297989E-5 kg	2.42442000297989E-5 kg
Elementary flow		mercury	1.86898726437705E-16 kg	1.86898726437705E-16 kg
Elementary flow		molybdenum	2.32508160307935E-7 kg	2.32508160307935E-7 kg
Elementary flow		natural aggregate	0.0049359209724076 kg	0.0049359209724076 kg
Elementary flow	Resources / Resources from ground / Non-renewable energy resources from ground	natural gas	33.8557572649893 kg	33.8557572649893 kg
Elementary flow		nickel	-1.14824394371488E-6 kg	-1.14824394371488E-6 kg
Elementary flow		olivine	1.64277366506876E-15 kg	1.64277366506876E-15 kg
Elementary flow		osmium	2.1691552485409E-13 kg	2.1691552485409E-13 kg
Elementary flow		oxygen	-0.00151005795237444 kg	-0.00151005795237444 kg
Elementary flow		palladium	3.14705310648967E-12 kg	3.14705310648967E-12 kg
Elementary flow	Resources / Resources from ground / Non-renewable energy resources from ground	peat	0.00181563544437996 kg	0.00181563544437996 kg
Elementary flow		phosphorus	-1.06088102835234E-4 kg	-1.06088102835234E-4 kg
Elementary flow		platinum	5.33398831608418E-12 kg	5.33398831608418E-12 kg
Elementary flow		potassium	-7.65741107166137E-5 kg	-7.65741107166137E-5 kg
Elementary flow		potassium chloride	2.87805601714714E-12 kg	2.87805601714714E-12 kg
Elementary flow		primary energy from geothermics	0.00678635312658188 MJ	0.00678635312658188 MJ
Elementary flow		primary energy from hydro power	0.267639798727462 MJ	0.267639798727462 MJ
Elementary flow		primary energy from solar energy	0.543451943151235 MJ	0.543451943151235 MJ
Elementary flow	Resources / Resources from water / Renewable energy resources from water	primary energy from waves	3.97303472486372E-13 kg	3.97303472486372E-13 kg
Elementary flow		primary energy from wind power	0.454780536354908 MJ	0.454780536354908 MJ
Elementary flow		pyrite	2.39338309211258E-9 kg	2.39338309211258E-9 kg
Elementary flow		quartz sand	0.00246217748559273 kg	0.00246217748559273 kg
Elementary flow		raw pumice	7.36535517735881E-7 kg	7.36535517735881E-7 kg
Elementary flow		rhodium	5.33546604209063E-13 kg	5.33546604209063E-13 kg
Elementary flow		river water	716.281843538391 kg	716.281843538391 kg
Elementary flow		ruthenium	1.05257369437395E-12 kg	1.05257369437395E-12 kg
Elementary flow		sea water	3.2406434214516 kg	3.2406434214516 kg
Elementary flow		silicon	5.93724830986636E-10 kg	5.93724830986636E-10 kg
Elementary flow		silver	7.52284225830006E-9 kg	7.52284225830006E-9 kg
Elementary flow		sodium chloride	0.04130784904289 kg	0.04130784904289 kg
Elementary flow		sodium nitrate	1.62399842390589E-21 kg	1.62399842390589E-21 kg
Elementary flow		sodium sulfate	4.57772642497109E-13 kg	4.57772642497109E-13 kg
Elementary flow		soil	0.00623471975338066 kg	0.00623471975338066 kg
Elementary flow		stone	0.00148708172004692 kg	0.00148708172004692 kg
Elementary flow		sulfur	1.19991352174911E-11 kg	1.19991352174911E-11 kg
Elementary flow		talc	1.57505644720236E-9 kg	1.57505644720236E-9 kg
Elementary flow		tantalum	6.01742884638187E-9 kg	6.01742884638187E-9 kg
Elementary flow		tin	1.29637109288017E-10 kg	1.29637109288017E-10 kg
Elementary flow		titanium	8.35981793334892E-8 kg	8.35981793334892E-8 kg
Elementary flow		uranium	1.53990384035652 MJ	1.53990384035652 MJ
Elementary flow	Resources / Resources from ground / Non-renewable element resources from ground	vanadium	1.77268943419952E-8 kg	1.77268943419952E-8 kg
Elementary flow	Resources / Resources from biosphere / Renewable energy resources from biosphere	wood	3.3985993842661E-11 kg	3.3985993842661E-11 kg
Elementary flow		zinc	7.07919492637895E-6 kg	7.07919492637895E-6 kg
Elementary flow	Resources / Resources from ground / Non-renewable element resources from ground	zirconium	3.47606893892652E-14 kg	3.47606893892652E-14 kg

Outputs

Type of flow	Classification	Flow	Mean amount	Resulting amount
Product flow	Valuable substances / Materials / Plastics	Styrene acrylonitrile (SAN), a-Methyl styrene acrylonitrile (AMSAN)	1.0 kg	1.0 kg
Elementary flow	Deposited goods / Radioactive waste	High radioactive waste	7.93976189633274E-7 kg	7.93976189633274E-7 kg
Elementary flow	Deposited goods / Radioactive waste	Low radioactive wastes	1.20675841178281E-5 kg	1.20675841178281E-5 kg
Elementary flow	Deposited goods / Radioactive waste	Medium radioactive wastes	5.98320288773623E-6 kg	5.98320288773623E-6 kg
Elementary flow	Deposited goods / Radioactive waste	Radioactive tailings	5.96052569550186E-4 kg	5.96052569550186E-4 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	1,3,5-trimethylbenzene	2.24327780379675E-19 kg	2.24327780379675E-19 kg
Elementary flow		1,2-dibromoethane	6.63275140217221E-20 kg	6.63275140217221E-20 kg
Elementary flow		1,2-dichloroethane	9.89259784666732E-19 kg	9.89259784666732E-19 kg
Elementary flow		1,2-dichloroethane	1.55257425767909E-20 kg	1.55257425767909E-20 kg
Elementary flow		1,2-dichloropropane	1.3079024850857E-21 kg	1.3079024850857E-21 kg
Elementary flow		2,3,7,8-tetrachlorodibenzo-p-dioxin	4.42183429376457E-14 kg	4.42183429376457E-14 kg
Elementary flow		2,3,7,8-tetrachlorodibenzo-p-dioxin	4.80970492985584E-21 kg	4.80970492985584E-21 kg
Elementary flow		acenaphthene	3.53940410678366E-9 kg	3.53940410678366E-9 kg
Elementary flow		acenaphthene	1.03207945213617E-9 kg	1.03207945213617E-9 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	acenaphthylene	4.15330431064495E-10 kg	4.15330431064495E-10 kg
Elementary flow		acenaphthylene	1.52094836411935E-9 kg	1.52094836411935E-9 kg
Elementary flow		acenaphthylene	4.4327593549516E-10 kg	4.4327593549516E-10 kg
Elementary flow		acetaldehyde	1.40972038099848E-6 kg	1.40972038099848E-6 kg
Elementary flow		acetic acid	6.48552184086876E-6 kg	6.48552184086876E-6 kg
Elementary flow		acetic acid	1.33942981901122E-9 kg	1.33942981901122E-9 kg
Elementary flow		acetic acid	3.805092628369E-16 kg	3.805092628369E-16 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	acetochlor	2.09813720609358E-15 kg	2.09813720609358E-15 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	acetochlor	1.31133575380849E-16 kg	1.31133575380849E-16 kg
Elementary flow		acetone	1.42749558091099E-6 kg	1.42749558091099E-6 kg
Elementary flow		acid (as H+)	2.79592486356042E-11 kg	2.79592486356042E-11 kg
Elementary flow		acid (as H+)	7.21791538783828E-9 kg	7.21791538783828E-9 kg
Elementary flow		acid (as H+)	6.07998564977702E-17 kg	6.07998564977702E-17 kg
Elementary flow		acrolein	4.17122113113119E-10 kg	4.17122113113119E-10 kg
Elementary flow		acryolonitrile	6.62610323814572E-7 kg	6.62610323814572E-7 kg
Elementary flow		acryolonitrile	4.01447756132567E-17 kg	4.01447756132567E-17 kg
Elementary flow		adsorbable organic halogen compounds	1.35550015761323E-6 kg	1.35550015761323E-6 kg
Elementary flow		adsorbable organic halogen compounds	7.66932415690345E-13 kg	7.66932415690345E-13 kg
Elementary flow		aluminium	1.53088638064053E-9 kg	1.53088638064053E-9 kg
Elementary flow		aluminium	2.26888684267731E-4 kg	2.26888684267731E-4 kg
Elementary flow		aluminium	3.28864223871285E-9 kg	3.28864223871285E-9 kg
Elementary flow		aluminium	3.12385120637998E-11 kg	3.12385120637998E-11 kg
Elementary flow		americium-241	1.83738087578444E-8 kBq	1.83738087578444E-8 kBq
Elementary flow		ammonia	4.15665305650255E-5 kg	4.15665305650255E-5 kg
Elementary flow		ammonia	2.31399176347877E-4 kg	2.31399176347877E-4 kg
Elementary flow		ammonia	7.57454280887676E-8 kg	7.57454280887676E-8 kg
Elementary flow		ammonia	8.4263709274194E-12 kg	8.4263709274194E-12 kg
Elementary flow		ammonium	3.91625726215661E-7 kg	3.91625726215661E-7 kg
Elementary flow		ammonium	7.81696360785361E-14 kg	7.81696360785361E-14 kg
Elementary flow		anthracene	6.42101040729478E-11 kg	6.42101040729478E-11 kg
Elementary flow		anthracene	6.61634050918217E-9 kg	6.61634050918217E-9 kg
Elementary flow		anthracene	1.92972215069507E-9 kg	1.92972215069507E-9 kg
Elementary flow		antimony	8.86076481319742E-9 kg	8.86076481319742E-9 kg
Elementary flow		antimony	1.97580199822837E-10 kg	1.97580199822837E-10 kg
Elementary flow		antimony	2.18813036825642E-15 kg	2.18813036825642E-15 kg
Elementary flow		antimony-124	1.12791570036375E-6 kBq	1.12791570036375E-6 kBq
Elementary flow		antimony-124	3.1886227930114E-5 kBq	3.1886227930114E-5 kBq
Elementary flow		antimony-125	3.61624154075483E-5 kBq	3.61624154075483E-5 kBq
Elementary flow		argon	3.06344384121606E-7 kg	3.06344384121606E-7 kg
Elementary flow		argon-41	0.0460685944588171 kBq	0.0460685944588171 kBq
Elementary flow		arsenic trioxide	3.0265602666942E-13 kg	3.0265602666942E-13 kg
Elementary flow		arsenic V	2.48137207859074E-8 kg	2.48137207859074E-8 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	arsenic V	2.50848413446495E-6 kg	2.50848413446495E-6 kg
Elementary flow		arsenic V	1.70184642024401E-12 kg	1.70184642024401E-12 kg
Elementary flow	Emissions / Emissions to water / Emissions to sea water	arsenic V	7.23970008788014E-7 kg	7.23970008788014E-7 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	atrazine	3.67543089522275E-15 kg	3.67543089522275E-15 kg
Elementary flow		atrazine	2.29714430951422E-16 kg	2.29714430951422E-16 kg
Elementary flow		barium	7.85085399442973E-8 kg	7.85085399442973E-8 kg
Elementary flow		barium	2.16713172376022E-5 kg	2.16713172376022E-5 kg
Elementary flow		barium	6.3104519167394E-6 kg	6.3104519167394E-6 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	benomyl	-3.63479565585507E-16 kg	-3.63479565585507E-16 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	benomyl	-2.27174728490942E-17 kg	-2.27174728490942E-17 kg
Elementary flow		benzene	4.71677785861498E-6 kg	4.71677785861498E-6 kg
Elementary flow		benzene	8.13013587516689E-6 kg	8.13013587516689E-6 kg
Elementary flow		benzene	2.36816274386213E-6 kg	2.36816274386213E-6 kg
Elementary flow		benzo[a]anthracene	3.24477921563247E-11 kg	3.24477921563247E-11 kg
Elementary flow		benzo[a]anthracene	4.05594191127792E-10 kg	4.05594191127792E-10 kg
Elementary flow		benzo[a]anthracene	1.18149298923727E-10 kg	1.18149298923727E-10 kg
Elementary flow		benzo[a]pyrene	3.85073501140699E-10 kg	3.85073501140699E-10 kg
Elementary flow		benzo[g,h,i]perylene	2.89968651403015E-11 kg	2.89968651403015E-11 kg
Elementary flow		benzo[k]fluoranthene	5.79037345243113E-11 kg	5.79037345243113E-11 kg
Elementary flow		benzo[k]fluoranthene	4.94431740515706E-11 kg	4.94431740515706E-11 kg
Elementary flow		benzo[k]fluoranthene	1.43996845933928E-11 kg	1.43996845933928E-11 kg
Elementary flow		beryllium	4.31523341125924E-10 kg	4.31523341125924E-10 kg
Elementary flow		beryllium	7.69357364526076E-11 kg	7.69357364526076E-11 kg
Elementary flow		beryllium	8.56489536663777E-17 kg	8.56489536663777E-17 kg
Elementary flow		beryllium	1.99950090100702E-16 kg	1.99950090100702E-16 kg
Elementary flow		biological oxygen demand	3.41797161801473E-5 kg	3.41797161801473E-5 kg
Elementary flow		biological oxygen demand	8.47134488757179E-7 kg	8.47134488757179E-7 kg
Elementary flow		boron	5.45907698925464E-7 kg	5.45907698925464E-7 kg
Elementary flow		boron	6.85232219156293E-7 kg	6.85232219156293E-7 kg
Elementary flow		boron	1.16536738658936E-15 kg	1.16536738658936E-15 kg
Elementary flow		bromate	5.62046426553676E-19 kg	5.62046426553676E-19 kg
Elementary flow		bromide	6.3095370276517E-11 kg	6.3095370276517E-11 kg
Elementary flow		bromine	1.1442986838769E-7 kg	1.1442986838769E-7 kg
Elementary flow		bromine	3.73273217546931E-12 kg	3.73273217546931E-12 kg
Elementary flow		butadiene	3.53975212971831E-18 kg	3.53975212971831E-18 kg
Elementary flow		butene	7.80712384835683E-9 kg	7.80712384835683E-9 kg
Elementary flow		cadmium	5.37019089521438E-9 kg	5.37019089521438E-9 kg
Elementary flow		cadmium	5.809839613902E-9 kg	5.809839613902E-9 kg
Elementary flow		cadmium	1.06957990664622E-6 kg	1.06957990664622E-6 kg
Elementary flow		cadmium	2.73298174419449E-11 kg	2.73298174419449E-11 kg
Elementary flow		cadmium	3.09680069639557E-7 kg	3.09680069639557E-7 kg
Elementary flow		calcium	7.03372518027925E-4 kg	7.03372518027925E-4 kg
Elementary flow		calcium	1.22695738044625E-5 kg	1.22695738044625E-5 kg
Elementary flow		calcium	2.20794316040215E-13 kg	2.20794316040215E-13 kg
Elementary flow		caprolactam	3.02386691702153E-12 kg	3.02386691702153E-12 kg
Elementary flow		carbon dioxide (biogenic)	0.0538727184820984 kg	0.0538727184820984 kg
Elementary flow		carbon dioxide	2.68209481837136 kg	2.68209481837136 kg
Elementary flow		carbon disulfide	1.28046356119826E-16 kg	1.28046356119826E-16 kg
Elementary flow		carbon monoxide	0.00139951445021292 kg	0.00139951445021292 kg
Elementary flow		carbon-14	0.057786910209454 kBq	0.057786910209454 kBq
Elementary flow		carbon-14	1.86391591622145E-6 kBq	1.86391591622145E-6 kBq
Elementary flow		carbon-14	7.51075847411783E-4 kBq	7.51075847411783E-4 kBq
Elementary flow		carbonate	0.00134972959408876 kg	0.00134972959408876 kg
Elementary flow		carbonate	3.96964953196512E-4 kg	3.96964953196512E-4 kg
Elementary flow		cesium-134	2.0197431252563E-7 kBq	2.0197431252563E-7 kBq
Elementary flow		cesium-134	1.24211868896243E-5 kBq	1.24211868896243E-5 kBq
Elementary flow		cesium-134	9.02193210104243E-6 kBq	9.02193210104243E-6 kBq
Elementary flow		cesium-137	1.92748630417361E-7 kBq	1.92748630417361E-7 kBq
Elementary flow		cesium-137	5.72880058652239E-5 kBq	5.72880058652239E-5 kBq
Elementary flow		cesium-137	1.20668341851443E-4 kBq	1.20668341851443E-4 kBq
Elementary flow		CFC-11	4.11261914685376E-15 kg	4.11261914685376E-15 kg
Elementary flow		CFC-114	8.78878294792974E-11 kg	8.78878294792974E-11 kg
Elementary flow		CFC-12	8.84213864847646E-16 kg	8.84213864847646E-16 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	CFC-13	5.55203713819326E-16 kg	5.55203713819326E-16 kg
Elementary flow		chemical oxygen demand	6.35184813087807E-4 kg	6.35184813087807E-4 kg
Elementary flow		chemical oxygen demand	3.89473086258831E-5 kg	3.89473086258831E-5 kg
Elementary flow		chlorate	2.69783502220058E-14 kg	2.69783502220058E-14 kg
Elementary flow		chloride	5.31782829103179E-6 kg	5.31782829103179E-6 kg
Elementary flow		chloride	0.121128683402199 kg	0.121128683402199 kg
Elementary flow		chloride	9.47739744156348E-6 kg	9.47739744156348E-6 kg
Elementary flow		chloride	0.031363066640108 kg	0.031363066640108 kg
Elementary flow		chlorine	6.60173195616141E-7 kg	6.60173195616141E-7 kg
Elementary flow		chlorine	2.7702714067758E-6 kg	2.7702714067758E-6 kg
Elementary flow		chlorine	1.46196356058726E-12 kg	1.46196356058726E-12 kg
Elementary flow		chloroform	5.15190330534044E-15 kg	5.15190330534044E-15 kg
Elementary flow		chromium	-8.69773704850308E-12 kg	-8.69773704850308E-12 kg
Elementary flow		chromium	4.33672946511655E-8 kg	4.33672946511655E-8 kg
Elementary flow		chromium	3.93223766677225E-6 kg	3.93223766677225E-6 kg
Elementary flow		chromium	7.04972914349081E-11 kg	7.04972914349081E-11 kg
Elementary flow		chromium	1.14926655826816E-6 kg	1.14926655826816E-6 kg
Elementary flow		chromium III	9.80625483885543E-8 kg	9.80625483885543E-8 kg
Elementary flow		chromium III	3.28975929449272E-10 kg	3.28975929449272E-10 kg
Elementary flow		chromium III	9.18919238819558E-9 kg	9.18919238819558E-9 kg
Elementary flow		chromium III	5.39774882595249E-13 kg	5.39774882595249E-13 kg
Elementary flow		chromium VI	1.54067956817479E-15 kg	1.54067956817479E-15 kg
Elementary flow		chromium VI	2.10251102615649E-8 kg	2.10251102615649E-8 kg
Elementary flow		chromium VI	6.23887931250532E-15 kg	6.23887931250532E-15 kg
Elementary flow		chrysene	7.98002539147105E-11 kg	7.98002539147105E-11 kg
Elementary flow		chrysene	1.48519608004354E-9 kg	1.48519608004354E-9 kg
Elementary flow		chrysene	4.32568834691636E-10 kg	4.32568834691636E-10 kg
Elementary flow		cobalt	1.19760749748736E-8 kg	1.19760749748736E-8 kg
Elementary flow		cobalt	1.40625853314937E-9 kg	1.40625853314937E-9 kg
Elementary flow		cobalt	1.71391410888815E-11 kg	1.71391410888815E-11 kg
Elementary flow		cobalt	1.20707702594338E-12 kg	1.20707702594338E-12 kg
Elementary flow		cobalt-58	7.20898226566977E-7 kBq	7.20898226566977E-7 kBq
Elementary flow		cobalt-58	1.8414683911463E-4 kBq	1.8414683911463E-4 kBq
Elementary flow		cobalt-60	1.82732873382309E-6 kBq	1.82732873382309E-6 kBq
Elementary flow		cobalt-60	1.53964348118722E-4 kBq	1.53964348118722E-4 kBq
Elementary flow		cobalt-60	1.44350913616679E-5 kBq	1.44350913616679E-5 kBq
Elementary flow		copper	8.59445130341681E-8 kg	8.59445130341681E-8 kg
Elementary flow		copper	3.73585137513735E-8 kg	3.73585137513735E-8 kg
Elementary flow		copper	3.85088411191153E-6 kg	3.85088411191153E-6 kg
Elementary flow		copper	1.29654561368376E-7 kg	1.29654561368376E-7 kg
Elementary flow		copper	1.07697160577793E-6 kg	1.07697160577793E-6 kg
Elementary flow		cresol	2.10217809729135E-17 kg	2.10217809729135E-17 kg
Elementary flow		cresol	1.61539823363418E-17 kg	1.61539823363418E-17 kg
Elementary flow		cumene	1.24777586933895E-15 kg	1.24777586933895E-15 kg
Elementary flow		curium	2.43508309392421E-8 kBq	2.43508309392421E-8 kBq
Elementary flow		cyanide	4.91228591528036E-8 kg	4.91228591528036E-8 kg
Elementary flow		cyanide	1.26197600158227E-6 kg	1.26197600158227E-6 kg
Elementary flow	Emissions / Emissions to water / Emissions to sea water	cyanide	4.35378447138423E-15 kg	4.35378447138423E-15 kg
Elementary flow		cyclohexane	5.01041934562456E-11 kg	5.01041934562456E-11 kg
Elementary flow		decane	5.92934854606863E-5 kg	5.92934854606863E-5 kg
Elementary flow		decane	4.69155665616311E-11 kg	4.69155665616311E-11 kg
Elementary flow		decane	1.20584925715891E-5 kg	1.20584925715891E-5 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	deltamethrin	2.04771781481634E-11 kg	2.04771781481634E-11 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	deltamethrin	1.27982363426022E-12 kg	1.27982363426022E-12 kg
Elementary flow		dibenz[a,h]anthracene	1.80486054447599E-11 kg	1.80486054447599E-11 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	dicamba	1.40426970900381E-16 kg	1.40426970900381E-16 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	dicamba	8.77668568127379E-18 kg	8.77668568127379E-18 kg
Elementary flow		dichloromethane	1.65620146292265E-13 kg	1.65620146292265E-13 kg
Elementary flow		diethylamine	9.77813559414269E-12 kg	9.77813559414269E-12 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	dimethenamid	4.16320498253862E-16 kg	4.16320498253862E-16 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	dimethenamid	2.60200311408664E-17 kg	2.60200311408664E-17 kg
Elementary flow		dimethylamine	3.76265662830558E-14 kg	3.76265662830558E-14 kg
Elementary flow		dinitrogen	2.08238667760562E-4 kg	2.08238667760562E-4 kg
Elementary flow		ethane	4.4911868663158E-4 kg	4.4911868663158E-4 kg
Elementary flow		ethanol	2.7996726196034E-6 kg	2.7996726196034E-6 kg
Elementary flow		ethyl benzene	5.5650918467838E-7 kg	5.5650918467838E-7 kg
Elementary flow		ethyl benzene	4.42619546961633E-7 kg	4.42619546961633E-7 kg
Elementary flow		ethyl benzene	1.28926784645282E-7 kg	1.28926784645282E-7 kg
Elementary flow		ethylene	1.43826550534473E-9 kg	1.43826550534473E-9 kg
Elementary flow		FC-14	7.02673519412799E-10 kg	7.02673519412799E-10 kg
Elementary flow		fipronil	1.42907178124021E-17 kg	1.42907178124021E-17 kg
Elementary flow		fipronil	8.9316986327513E-19 kg	8.9316986327513E-19 kg
Elementary flow		fluoranthene	2.10205402543257E-10 kg	2.10205402543257E-10 kg
Elementary flow		fluoranthene	4.60985509339343E-10 kg	4.60985509339343E-10 kg
Elementary flow		fluoranthene	1.35158007738294E-10 kg	1.35158007738294E-10 kg
Elementary flow		fluorene	6.67560385463606E-10 kg	6.67560385463606E-10 kg
Elementary flow		fluoride	1.15802563812829E-7 kg	1.15802563812829E-7 kg
Elementary flow		fluoride	3.11325623913424E-4 kg	3.11325623913424E-4 kg
Elementary flow		fluoride	1.50196977713652E-8 kg	1.50196977713652E-8 kg
Elementary flow		fluoride	5.26638216299078E-9 kg	5.26638216299078E-9 kg
Elementary flow		fluorine	1.77461050240698E-10 kg	1.77461050240698E-10 kg
Elementary flow		fluorine	3.24369784280156E-9 kg	3.24369784280156E-9 kg
Elementary flow		formaldehyde	1.04760773482023E-5 kg	1.04760773482023E-5 kg
Elementary flow		formaldehyde	1.07748247809843E-15 kg	1.07748247809843E-15 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	glyphosate	3.43567753027088E-16 kg	3.43567753027088E-16 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	glyphosate	2.1472984564193E-17 kg	2.1472984564193E-17 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	Halon-1001	1.48270023246441E-16 kg	1.48270023246441E-16 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	Halon-1301	2.55592009117648E-18 kg	2.55592009117648E-18 kg
Elementary flow	Deposited goods / Stockpile goods	Hazardous waste (deposited)	0.00113276397104954 kg	0.00113276397104954 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	HCFC-124	2.52219256917488E-16 kg	2.52219256917488E-16 kg
Elementary flow		HCFC-140	9.1969594184759E-15 kg	9.1969594184759E-15 kg
Elementary flow		HCFC-22	1.18729038922005E-11 kg	1.18729038922005E-11 kg
Elementary flow		helium	3.99945660523066E-11 kg	3.99945660523066E-11 kg
Elementary flow		heptane	2.77547809558973E-6 kg	2.77547809558973E-6 kg
Elementary flow		hexamethylene diamine	1.73158793952664E-19 kg	1.73158793952664E-19 kg
Elementary flow		hexane	4.58120767823078E-6 kg	4.58120767823078E-6 kg
Elementary flow		hexane	2.3125647245557E-18 kg	2.3125647245557E-18 kg
Elementary flow		hexane	1.76367277234754E-18 kg	1.76367277234754E-18 kg
Elementary flow		HFC-116	6.49696807933837E-11 kg	6.49696807933837E-11 kg
Elementary flow		HFC-125	5.36488157293707E-11 kg	5.36488157293707E-11 kg
Elementary flow		HFC-134a	3.39738669046054E-11 kg	3.39738669046054E-11 kg
Elementary flow		HFC-143	4.792810803286E-11 kg	4.792810803286E-11 kg
Elementary flow		HFC-23	3.68327749669423E-10 kg	3.68327749669423E-10 kg
Elementary flow		HFC-245fa	9.53474213199718E-10 kg	9.53474213199718E-10 kg
Elementary flow		HFC-32	8.0473223594056E-12 kg	8.0473223594056E-12 kg
Elementary flow		hydrocarbons (unspecified)	1.01018876375076E-4 kg	1.01018876375076E-4 kg
Elementary flow	Emissions / Emissions to water / Emissions to sea water	hydrocarbons (unspecified)	2.49353965161784E-13 kg	2.49353965161784E-13 kg
Elementary flow		hydrocyanic acid	9.89725438204493E-10 kg	9.89725438204493E-10 kg
Elementary flow		hydrocyanic acid	4.25176850169288E-16 kg	4.25176850169288E-16 kg
Elementary flow		hydrogen	5.90444239266E-7 kg	5.90444239266E-7 kg
Elementary flow		hydrogen arsenide	2.51204502350857E-11 kg	2.51204502350857E-11 kg
Elementary flow		hydrogen bromide	3.84569687460004E-12 kg	3.84569687460004E-12 kg
Elementary flow		hydrogen chloride	1.67292504527638E-5 kg	1.67292504527638E-5 kg
Elementary flow		hydrogen chloride	7.04299366536753E-10 kg	7.04299366536753E-10 kg
Elementary flow		hydrogen fluoride	8.53365243066218E-7 kg	8.53365243066218E-7 kg
Elementary flow		hydrogen fluoride	4.12881889530411E-10 kg	4.12881889530411E-10 kg
Elementary flow		hydrogen iodide	6.26703947696085E-19 kg	6.26703947696085E-19 kg
Elementary flow		hydrogen peroxide	3.28146694289874E-7 kg	3.28146694289874E-7 kg
Elementary flow		hydrogen sulfide	5.01850108990656E-5 kg	5.01850108990656E-5 kg
Elementary flow		hydrogen-3	0.163919608971956 kBq	0.163919608971956 kBq
Elementary flow		hydrogen-3	3.46340538298869 kBq	3.46340538298869 kBq
Elementary flow		hydrogen-3	0.986773823551516 kBq	0.986773823551516 kBq
Elementary flow		hydroxide	2.25391574813513E-10 kg	2.25391574813513E-10 kg
Elementary flow		indeno(1,2,3-cd)pyrene	2.15895270528959E-11 kg	2.15895270528959E-11 kg
Elementary flow	Emissions to fresh water / Inorganic emissions to fresh water	Inorganic salts and acids (unspecified)	2.52985258236564E-22 kg	2.52985258236564E-22 kg
Elementary flow		iodide	1.23539981164955E-16 kg	1.23539981164955E-16 kg
Elementary flow		iodine-129	4.05538185740637E-8 kBq	4.05538185740637E-8 kBq
Elementary flow		iodine-129	2.66590104330807E-6 kBq	2.66590104330807E-6 kBq
Elementary flow		iodine-131	0.00133095987838011 kBq	0.00133095987838011 kBq
Elementary flow		iodine-131	6.08687727878798E-6 kBq	6.08687727878798E-6 kBq
Elementary flow		iodine-131	1.31945756977746E-4 kBq	1.31945756977746E-4 kBq
Elementary flow		iron	2.16849835244756E-7 kg	2.16849835244756E-7 kg
Elementary flow		iron	1.40242150372505E-4 kg	1.40242150372505E-4 kg
Elementary flow		iron	1.52021328382818E-9 kg	1.52021328382818E-9 kg
Elementary flow		iron	3.01329227661558E-11 kg	3.01329227661558E-11 kg
Elementary flow		isobutane	5.12052960815278E-7 kg	5.12052960815278E-7 kg
Elementary flow		isopropanol	2.04344549383262E-9 kg	2.04344549383262E-9 kg
Elementary flow		krypton-85	0.939988596510898 kBq	0.939988596510898 kBq
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	lasso	-1.43213887566285E-14 kg	-1.43213887566285E-14 kg
Elementary flow		lead	1.38440955676894E-7 kg	1.38440955676894E-7 kg
Elementary flow		lead	1.51411552057124E-7 kg	1.51411552057124E-7 kg
Elementary flow		lead	9.47041382871081E-7 kg	9.47041382871081E-7 kg
Elementary flow		lead	8.27892453361638E-12 kg	8.27892453361638E-12 kg
Elementary flow		lead	2.1645822193925E-7 kg	2.1645822193925E-7 kg
Elementary flow		lead dioxide	4.26986840447289E-15 kg	4.26986840447289E-15 kg
Elementary flow		lead-210	5.49182787401789E-6 kBq	5.49182787401789E-6 kBq
Elementary flow		magnesium	2.18010830126991E-5 kg	2.18010830126991E-5 kg
Elementary flow		magnesium	5.17410247242831E-8 kg	5.17410247242831E-8 kg
Elementary flow		magnesium	1.47872650615386E-7 kg	1.47872650615386E-7 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	mancozeb	-2.08548738429875E-15 kg	-2.08548738429875E-15 kg
Elementary flow		mancozeb	-1.30342961518672E-16 kg	-1.30342961518672E-16 kg
Elementary flow		manganese	1.72726296849647E-7 kg	1.72726296849647E-7 kg
Elementary flow		manganese	5.4586084546573E-7 kg	5.4586084546573E-7 kg
Elementary flow		manganese	1.39057945705237E-10 kg	1.39057945705237E-10 kg
Elementary flow		manganese	4.8188323449499E-12 kg	4.8188323449499E-12 kg
Elementary flow		manganese-54	1.54000048281055E-5 kBq	1.54000048281055E-5 kBq
Elementary flow		m-cresol	2.43805391934766E-13 kg	2.43805391934766E-13 kg
Elementary flow		mercaptan	1.04932111192441E-8 kg	1.04932111192441E-8 kg
Elementary flow		mercury	9.80643812957219E-10 kg	9.80643812957219E-10 kg
Elementary flow		mercury	1.27525058417765E-8 kg	1.27525058417765E-8 kg
Elementary flow		mercury	9.19161360983605E-9 kg	9.19161360983605E-9 kg
Elementary flow		mercury	2.97751373709704E-14 kg	2.97751373709704E-14 kg
Elementary flow		mercury	1.79327827979947E-9 kg	1.79327827979947E-9 kg
Elementary flow		methacrylate	5.04271545453167E-14 kg	5.04271545453167E-14 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	methane (biogenic)	1.625975455629E-10 kg	1.625975455629E-10 kg
Elementary flow		methane	0.00900784168037429 kg	0.00900784168037429 kg
Elementary flow		methanol	2.80537591357628E-6 kg	2.80537591357628E-6 kg
Elementary flow		methanol	1.87027475424247E-4 kg	1.87027475424247E-4 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	methomyl	-4.03944444385617E-19 kg	-4.03944444385617E-19 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	methomyl	-2.52465277741013E-20 kg	-2.52465277741013E-20 kg
Elementary flow		methyl methacrylate	7.98680785449641E-12 kg	7.98680785449641E-12 kg
Elementary flow		molybdenum	9.15425955483641E-9 kg	9.15425955483641E-9 kg
Elementary flow		molybdenum	9.28769440151553E-8 kg	9.28769440151553E-8 kg
Elementary flow		molybdenum	6.1845052027191E-18 kg	6.1845052027191E-18 kg
Elementary flow		naphthalene	6.78040167063635E-9 kg	6.78040167063635E-9 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	naphthalene	2.55554645479272E-7 kg	2.55554645479272E-7 kg
Elementary flow		naphthalene	7.44297645071054E-8 kg	7.44297645071054E-8 kg
Elementary flow		n-butane	1.24667480165683E-4 kg	1.24667480165683E-4 kg
Elementary flow		n-butyl-acetate	2.70438472119496E-14 kg	2.70438472119496E-14 kg
Elementary flow		nickel	4.85647534639202E-8 kg	4.85647534639202E-8 kg
Elementary flow		nickel	2.63245529430631E-7 kg	2.63245529430631E-7 kg
Elementary flow		nickel	2.56553673180625E-6 kg	2.56553673180625E-6 kg
Elementary flow		nickel	4.30830672103957E-11 kg	4.30830672103957E-11 kg
Elementary flow		nickel	4.0303336487288E-7 kg	4.0303336487288E-7 kg
Elementary flow		nitrate	5.25321082978138E-17 kg	5.25321082978138E-17 kg
Elementary flow		nitrate	2.46871162201463E-4 kg	2.46871162201463E-4 kg
Elementary flow		nitrate	4.8590058269557E-13 kg	4.8590058269557E-13 kg
Elementary flow		nitrate	8.02196563722918E-7 kg	8.02196563722918E-7 kg
Elementary flow		nitrite	7.08231615033764E-10 kg	7.08231615033764E-10 kg
Elementary flow		nitrite	4.0921249954392E-9 kg	4.0921249954392E-9 kg
Elementary flow		nitrogen dioxide	0.00616645446322653 kg	0.00616645446322653 kg
Elementary flow		nitrogen monoxide	8.99966839925006E-6 kg	8.99966839925006E-6 kg
Elementary flow		nitrogen trifluoride	7.05174650296885E-12 kg	7.05174650296885E-12 kg
Elementary flow		nitrous oxide	1.7290471919322E-4 kg	1.7290471919322E-4 kg
Elementary flow		non-methane volatile organic compounds	0.00137809541804787 kg	0.00137809541804787 kg
Elementary flow		octane	1.52685872405676E-6 kg	1.52685872405676E-6 kg
Elementary flow	Deposited goods / Stockpile goods	Overburden (deposited)	1.4104782569823 kg	1.4104782569823 kg
Elementary flow		oxygen	0.00703026784303972 kg	0.00703026784303972 kg
Elementary flow		palladium	4.55372743478277E-17 kg	4.55372743478277E-17 kg
Elementary flow		para-cresol	2.41093974042194E-13 kg	2.41093974042194E-13 kg
Elementary flow		particles (> PM10)	4.55787377530206E-5 kg	4.55787377530206E-5 kg
Elementary flow		particles (> PM10)	0.00470477826030022 kg	0.00470477826030022 kg
Elementary flow		particles (> PM10)	6.74198769999179E-4 kg	6.74198769999179E-4 kg
Elementary flow		particles (PM10)	1.44437752077138E-7 kg	1.44437752077138E-7 kg
Elementary flow		particles (PM10)	3.87868343723529E-4 kg	3.87868343723529E-4 kg
Elementary flow		particles (PM2.5 - PM10)	9.8152167726128E-5 kg	9.8152167726128E-5 kg
Elementary flow		particles (PM2.5)	6.94284445871702E-5 kg	6.94284445871702E-5 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	pentachlorophenol	3.87232594669891E-13 kg	3.87232594669891E-13 kg
Elementary flow		pentane	5.48630784451011E-5 kg	5.48630784451011E-5 kg
Elementary flow		phenanthrene	2.12825347153926E-9 kg	2.12825347153926E-9 kg
Elementary flow		phenol	1.11564222016821E-10 kg	1.11564222016821E-10 kg
Elementary flow		phenol	9.20240082116814E-6 kg	9.20240082116814E-6 kg
Elementary flow		phenol	2.39473423725572E-6 kg	2.39473423725572E-6 kg
Elementary flow		phosphate	1.57221692742898E-5 kg	1.57221692742898E-5 kg
Elementary flow		phosphate	1.06844295675195E-7 kg	1.06844295675195E-7 kg
Elementary flow		phosphate	2.24989270142254E-10 kg	2.24989270142254E-10 kg
Elementary flow		phosphine	2.74235099402245E-12 kg	2.74235099402245E-12 kg
Elementary flow		plutonium	4.69345246837722E-13 kBq	4.69345246837722E-13 kBq
Elementary flow		plutonium	7.30543294889794E-8 kBq	7.30543294889794E-8 kBq
Elementary flow		polonium-210	8.23774181102678E-6 kBq	8.23774181102678E-6 kBq
Elementary flow		polychlorinated biphenyls	4.45301432170956E-11 kg	4.45301432170956E-11 kg
Elementary flow		polycyclic aromatic hydrocarbons	3.88817250334415E-8 kg	3.88817250334415E-8 kg
Elementary flow		polycyclic aromatic hydrocarbons	1.21945215344435E-9 kg	1.21945215344435E-9 kg
Elementary flow		polycyclic aromatic hydrocarbons	2.67261690515867E-11 kg	2.67261690515867E-11 kg
Elementary flow		potassium	-3.93961669333268E-6 kg	-3.93961669333268E-6 kg
Elementary flow		potassium	7.47627190722336E-8 kg	7.47627190722336E-8 kg
Elementary flow		potassium	2.67866023650269E-14 kg	2.67866023650269E-14 kg
Elementary flow		propane	5.70078992133475E-4 kg	5.70078992133475E-4 kg
Elementary flow		propene	1.76082225596328E-7 kg	1.76082225596328E-7 kg
Elementary flow		propionic acid	2.30598787263202E-9 kg	2.30598787263202E-9 kg
Elementary flow		propylene glycol monomethyl ether acetate	4.52734219739752E-10 kg	4.52734219739752E-10 kg
Elementary flow		protactinium-234	2.47625694519553E-9 kBq	2.47625694519553E-9 kBq
Elementary flow		protactinium-234	1.15712941364277E-5 kBq	1.15712941364277E-5 kBq
Elementary flow		R-40	1.18010192129873E-16 kg	1.18010192129873E-16 kg
Elementary flow		R-40	5.61838322787287E-14 kg	5.61838322787287E-14 kg
Elementary flow		radium-224	6.17670422984243E-17 kBq	6.17670422984243E-17 kBq
Elementary flow		radium-226	3.26114889631971E-5 kBq	3.26114889631971E-5 kBq
Elementary flow		radium-226	0.0454120843613007 kBq	0.0454120843613007 kBq
Elementary flow		radium-228	1.23534330287186E-16 kBq	1.23534330287186E-16 kBq
Elementary flow		radon-222	2.38974541646112 kBq	2.38974541646112 kBq
Elementary flow		rhodium	4.39586427461364E-17 kg	4.39586427461364E-17 kg
Elementary flow		ruthenium-106	4.42645165563332E-6 kBq	4.42645165563332E-6 kBq
Elementary flow		ruthenium-106	4.0598694454691E-4 kBq	4.0598694454691E-4 kBq
Elementary flow		scandium	4.3585217877669E-17 kg	4.3585217877669E-17 kg
Elementary flow		selenium	4.56899302839095E-8 kg	4.56899302839095E-8 kg
Elementary flow		selenium	1.98392017279909E-8 kg	1.98392017279909E-8 kg
Elementary flow		selenium	1.50839678830175E-14 kg	1.50839678830175E-14 kg
Elementary flow		silicium tetrafluoride	1.27728872829201E-12 kg	1.27728872829201E-12 kg
Elementary flow		silver	1.53088642324172E-9 kg	1.53088642324172E-9 kg
Elementary flow		silver	2.82799624868464E-9 kg	2.82799624868464E-9 kg
Elementary flow		silver	1.83520642630201E-17 kg	1.83520642630201E-17 kg
Elementary flow		silver-110	4.00911802800976E-5 kBq	4.00911802800976E-5 kBq
Elementary flow		sodium	0.00635651141047116 kg	0.00635651141047116 kg
Elementary flow		sodium	9.02005518983018E-8 kg	9.02005518983018E-8 kg
Elementary flow		sodium	1.69176268160471E-5 kg	1.69176268160471E-5 kg
Elementary flow	Deposited goods / Stockpile goods	Spoil (deposited)	0.0079407662679628 kg	0.0079407662679628 kg
Elementary flow		strontium	1.65407571389804E-15 kg	1.65407571389804E-15 kg
Elementary flow		strontium	9.58147517352556E-7 kg	9.58147517352556E-7 kg
Elementary flow		strontium	9.76441125182685E-13 kg	9.76441125182685E-13 kg
Elementary flow		strontium	1.75442211176188E-8 kg	1.75442211176188E-8 kg
Elementary flow		strontium-90	2.17652701822361E-6 kBq	2.17652701822361E-6 kBq
Elementary flow		strontium-90	2.04121213786085E-5 kBq	2.04121213786085E-5 kBq
Elementary flow		styrene	1.58266461774783E-6 kg	1.58266461774783E-6 kg
Elementary flow		sulfate	1.6845128845097E-9 kg	1.6845128845097E-9 kg
Elementary flow		sulfate	0.00133046605389722 kg	0.00133046605389722 kg
Elementary flow		sulfate	8.72237773292706E-9 kg	8.72237773292706E-9 kg
Elementary flow		sulfate	1.67222469688103E-4 kg	1.67222469688103E-4 kg
Elementary flow		sulfide	2.48503482812848E-4 kg	2.48503482812848E-4 kg
Elementary flow		sulfide	4.9892986503903E-8 kg	4.9892986503903E-8 kg
Elementary flow		sulfide	7.22735104701726E-5 kg	7.22735104701726E-5 kg
Elementary flow		sulfite	2.06864296334144E-7 kg	2.06864296334144E-7 kg
Elementary flow		sulfur	8.99950579369616E-10 kg	8.99950579369616E-10 kg
Elementary flow		sulfur	1.80784021521741E-12 kg	1.80784021521741E-12 kg
Elementary flow	Emissions / Emissions to soil / Emissions to non-agricultural soil	sulfur	2.36144156612563E-10 kg	2.36144156612563E-10 kg
Elementary flow		sulfur	9.38782279397772E-10 kg	9.38782279397772E-10 kg
Elementary flow		sulfur dioxide	0.0039899809795167 kg	0.0039899809795167 kg
Elementary flow		sulfur hexafluoride	9.26360881603411E-14 kg	9.26360881603411E-14 kg
Elementary flow		sulfur trioxide	9.42488162616728E-10 kg	9.42488162616728E-10 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	sulfur trioxide	1.53085152562743E-9 kg	1.53085152562743E-9 kg
Elementary flow	Deposited goods / Stockpile goods	Tailings (deposited)	0.00186322766179929 kg	0.00186322766179929 kg
Elementary flow		tellurium	7.99475433778223E-12 kg	7.99475433778223E-12 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	terbufos	1.58024631677636E-16 kg	1.58024631677636E-16 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	terbufos	9.87653947985226E-18 kg	9.87653947985226E-18 kg
Elementary flow		tetrachloroethene	1.62920831019646E-15 kg	1.62920831019646E-15 kg
Elementary flow	Emissions / Emissions to water / Emissions to fresh water	tetrachloroethene	5.14978031096561E-15 kg	5.14978031096561E-15 kg
Elementary flow	Emissions / Emissions to water / Emissions to sea water	tetrachloroethene	2.12299437481722E-18 kg	2.12299437481722E-18 kg
Elementary flow		thallium	5.55221073767927E-11 kg	5.55221073767927E-11 kg
Elementary flow		thallium	1.06186737680144E-11 kg	1.06186737680144E-11 kg
Elementary flow		thorium-228	2.47068660574373E-16 kBq	2.47068660574373E-16 kBq
Elementary flow		thorium-230	8.23825094796878E-6 kBq	8.23825094796878E-6 kBq
Elementary flow		thorium-230	0.00103337989221641 kBq	0.00103337989221641 kBq
Elementary flow		thorium-234	2.54058467211273E-9 kBq	2.54058467211273E-9 kBq
Elementary flow		thorium-234	1.15712946551177E-5 kBq	1.15712946551177E-5 kBq
Elementary flow		tin	1.93670637813706E-8 kg	1.93670637813706E-8 kg
Elementary flow		tin	2.70977646479138E-14 kg	2.70977646479138E-14 kg
Elementary flow		tin	2.19808192691215E-17 kg	2.19808192691215E-17 kg
Elementary flow		tin oxide	2.3013418486332E-20 kg	2.3013418486332E-20 kg
Elementary flow		titanium	1.89187653508538E-9 kg	1.89187653508538E-9 kg
Elementary flow		titanium	1.29055915938134E-8 kg	1.29055915938134E-8 kg
Elementary flow		titanium	2.2383721959062E-18 kg	2.2383721959062E-18 kg
Elementary flow		toluene	2.93923410198257E-7 kg	2.93923410198257E-7 kg
Elementary flow		toluene	4.94468613054044E-6 kg	4.94468613054044E-6 kg
Elementary flow		toluene	1.44026290907107E-6 kg	1.44026290907107E-6 kg
Elementary flow		total organic carbon	1.05251226405152E-4 kg	1.05251226405152E-4 kg
Elementary flow		total organic carbon	8.47134511965676E-7 kg	8.47134511965676E-7 kg
Elementary flow		trichloroethene	5.88679698686087E-11 kg	5.88679698686087E-11 kg
Elementary flow		triethylene glycol	6.77859641933443E-17 kg	6.77859641933443E-17 kg
Elementary flow	Emissions / Emissions to air / Emissions to air, unspecified	trifluralin	-4.36139572529774E-15 kg	-4.36139572529774E-15 kg
Elementary flow		trifluralin	-2.72587232831109E-16 kg	-2.72587232831109E-16 kg
Elementary flow		tungsten	1.32255565549352E-10 kg	1.32255565549352E-10 kg
Elementary flow		uranium-234	2.98953702465112E-5 kBq	2.98953702465112E-5 kBq
Elementary flow		uranium-234	4.10938412507713E-4 kBq	4.10938412507713E-4 kBq
Elementary flow		uranium-234	1.20104471095127E-6 kBq	1.20104471095127E-6 kBq
Elementary flow		uranium-235	3.90973469688975E-7 kBq	3.90973469688975E-7 kBq
Elementary flow		uranium-235	2.01756316548906E-6 kBq	2.01756316548906E-6 kBq
Elementary flow		uranium-238	3.25832741448907E-5 kBq	3.25832741448907E-5 kBq
Elementary flow		uranium-238	4.56301906892203E-4 kBq	4.56301906892203E-4 kBq
Elementary flow		uranium-238	1.20104471095127E-6 kBq	1.20104471095127E-6 kBq
Elementary flow		used air	16.6715548548769 kg	16.6715548548769 kg
Elementary flow		vanadium	4.32673345351912E-7 kg	4.32673345351912E-7 kg
Elementary flow		vanadium	2.60652681901662E-8 kg	2.60652681901662E-8 kg
Elementary flow		vanadium	2.40632294686973E-15 kg	2.40632294686973E-15 kg
Elementary flow		vinyl chloride	7.96826881255516E-10 kg	7.96826881255516E-10 kg
Elementary flow		vinyl chloride	4.91356550927184E-13 kg	4.91356550927184E-13 kg
Elementary flow		volatile organic compound	7.52802530329081E-6 kg	7.52802530329081E-6 kg
Elementary flow		volatile organic compound	2.09885418192255E-5 kg	2.09885418192255E-5 kg
Elementary flow		volatile organic compound	8.47134498343678E-9 kg	8.47134498343678E-9 kg
Elementary flow	Deposited goods / Stockpile goods	Waste (deposited)	0.0100228388817124 kg	0.0100228388817124 kg
Elementary flow		waste heat	5.61372231264079 MJ	5.61372231264079 MJ
Elementary flow		waste heat	0.381910977431995 MJ	0.381910977431995 MJ
Elementary flow		waste heat	0.00295937375149336 MJ	0.00295937375149336 MJ
Elementary flow	Emissions to air / Inorganic emissions to air	Water (evapotranspiration)	2.85615043899905 kg	2.85615043899905 kg
Elementary flow	Emissions to fresh water / Other emissions to fresh water	Water (groundwater from technosphere, waste water)	3.81832905043371E-6 kg	3.81832905043371E-6 kg
Elementary flow	Emissions to fresh water / Other emissions to fresh water	Water (river water from technosphere, cooling water)	40.6405141285175 kg	40.6405141285175 kg
Elementary flow	Emissions to fresh water / Other emissions to fresh water	Water (river water from technosphere, rain water)	8.5480140365578E-6 kg	8.5480140365578E-6 kg
Elementary flow	Emissions to fresh water / Other emissions to fresh water	Water (river water from technosphere, turbined)	718.959077306107 kg	718.959077306107 kg
Elementary flow	Emissions to fresh water / Other emissions to fresh water	Water (river water from technosphere, waste water)	4.46328520983595 kg	4.46328520983595 kg
Elementary flow	Emissions to sea water / Other emissions to sea water	Water (sea water from technosphere, cooling water)	3.21264138820798 kg	3.21264138820798 kg
Elementary flow	Emissions to sea water / Other emissions to sea water	Water (sea water from technosphere, waste water)	0.134104216852118 kg	0.134104216852118 kg
Elementary flow		water vapour	13.0393786778272 kg	13.0393786778272 kg
Elementary flow		xenon-131	0.0318775139651722 kBq	0.0318775139651722 kBq
Elementary flow		xenon-133	0.562219596336974 kBq	0.562219596336974 kBq
Elementary flow		xenon-135	0.892106959979033 kBq	0.892106959979033 kBq
Elementary flow		xenon-137	0.144164084335372 kBq	0.144164084335372 kBq
Elementary flow		xenon-138	0.158290176965152 kBq	0.158290176965152 kBq
Elementary flow		xylene (all isomers)	2.33826693964762E-6 kg	2.33826693964762E-6 kg
Elementary flow		xylene (all isomers)	1.76677929870575E-6 kg	1.76677929870575E-6 kg
Elementary flow		xylene (all isomers)	5.1463034079844E-7 kg	5.1463034079844E-7 kg
Elementary flow		zinc	3.89018437257343E-7 kg	3.89018437257343E-7 kg
Elementary flow		zinc	1.48853713385939E-7 kg	1.48853713385939E-7 kg
Elementary flow		zinc	3.26517669949926E-7 kg	3.26517669949926E-7 kg
Elementary flow		zinc	1.31309721328719E-10 kg	1.31309721328719E-10 kg
Elementary flow		zinc	8.81334268516491E-9 kg	8.81334268516491E-9 kg
Elementary flow		zinc oxide	4.60610264128815E-20 kg	4.60610264128815E-20 kg
